Footprint (W × L × H): 9.2 × 11.7 × 8.7 ft — (280 × 355 × 270 cm)
Machine Standard Configuration
Direct Drive 12,000 RPM Inline Spindle
Side Mount Arm Type Tool Changer (24+1)
Pneumatic System with air tank and air gun
Centralized Oil Lubrication System
External Spindle Cooling System
Internal Auger Chip Conveyor / Internal Flush
External Manual Bucket Chip Conveyor
3-color signal lamp, working light, windows on both sides
Full enclosure with top cover, door interlock
Transformer, standard attachments and documentation
Design & Structural Features
High-Rigidity Frame & A-Frame Column

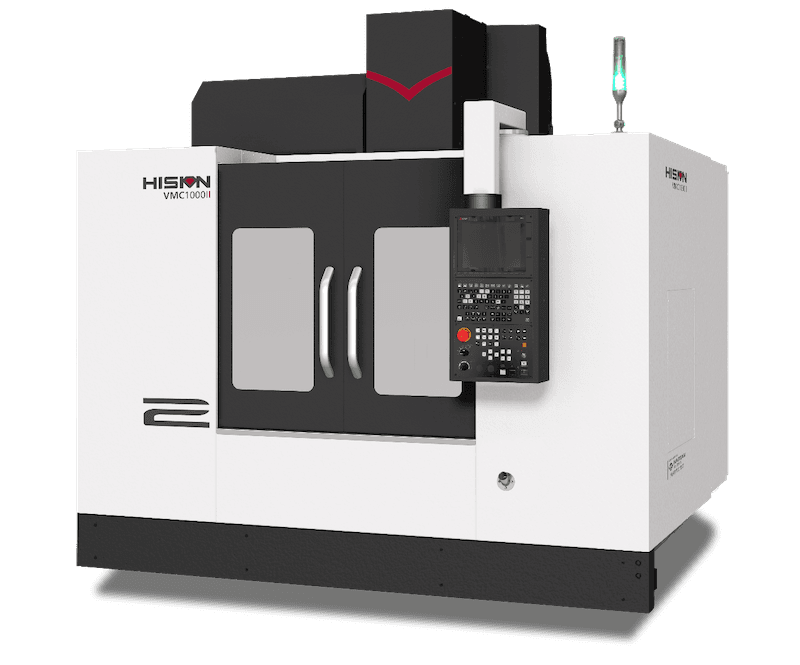

The VMC1000II is engineered with a robust frame cast entirely from high-grade gray iron, providing industry-leading vibration damping and structural mass. The column utilizes a precision-mounted herringbone and cross-ribbed “A-shape” geometry, boosting torsional stiffness and minimizing spindle deflection. The centrally mounted spindle head travels on dual high-precision roller linear guides for smooth, accurate vertical movement.
High-Precision Linear Guideway System
Heavy-duty guideways on all three axes (X, Y, Z) ensure fluid positioning and high-speed rapids, maintaining tight tolerances over extended production cycles.
High-Performance 12,000 RPM Direct Drive Spindle
The inline direct drive design eliminates vibration and power loss associated with belt-driven spindles. An integrated oil cooling system maintains thermal stability and positional accuracy throughout long production runs. Peak torque of 95.5 Nm (70.4 ft-lbf) supports both heavy-duty roughing and high-speed finishing.
Side-Mount Swing-Arm Automatic Tool Changer (ATC)
The cam-driven 24+1 station ATC delivers fast, reliable tool changes with the magazine positioned outside the machining zone for a clean cutting environment. A twin-bearing arm and integrated sensors ensure stable, consistent operation.
Precision-Ground Work Table
The 1,200 × 600 mm table supports large or multiple part setups. Five T-slots are sized and spaced for compatibility with standard North American fixturing systems.
Chip Management & Automation
An internal flush system combined with dual auger chip conveyors handles high-volume chip removal efficiently. The machine includes interfaces for 4th-axis rotary tables, automated tool management systems, and an auto-door, making it automation-ready from the factory floor.
Included Options
OILCHILL: Oil chiller
OCCL: Outside Belt Type Chip Conveyor (Left execution)
