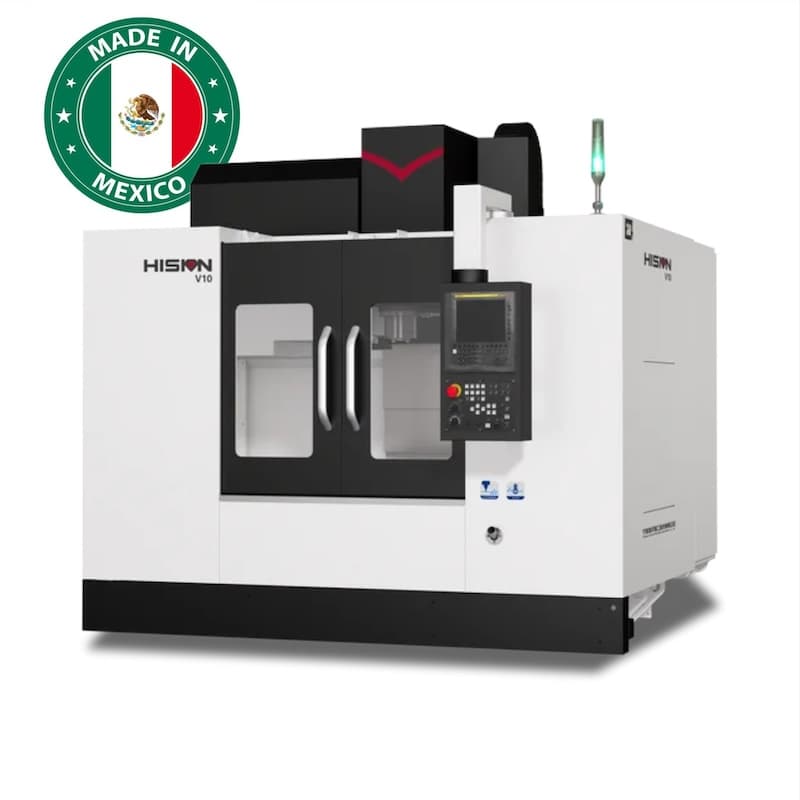

Vertical Machining Center Hision V10MX, Value Package I, 1000x600 mm, 12'000 RPM

V10MX_1Made to order

Special Value Package for Canadian market: Fanuc 0i MF Plus (3B); 12,000 RPM CAT40 Spindle with Oil chiller; 24+1 Side Mount Tool Changer; Inside Augers; Belt type Chip conveyor; 4th Axis Interface; Water gun (Automatic); 2GB memory;

Made in Mexico. Delivery and installation included.

From CA$89,447.75

Std. delivery incl. Crossed-out price = offline retail

Configure and View

Technical Description

Reviews

Full Specification V10MX, Value Package I

Travels

X Axis: 39.3 in / 1000 mm
Y Axis: 23.6 in / 600 mm
Z Axis: 23.6 in / 600 mm
Spindle Nose to Table (Max): 29.5 in / 750 mm
Spindle Nose to Table (Min): 5.9 in / 150 mm

Spindle

Max Speed: 12,000 rpm
Drive: Inline Direct
Taper: CAT 40
Rating (Max/Cont): 20 / 14.75 hp - (15 / 11 kW)
Max Torque: 70.4 ft-lbf @ 2k rpm - (95.5 Nm @ 2k rpm)
Cont Torque: 38.7 ft-lbf @ 2k rpm - (52.5 Nm @ 2k rpm)

Table

Length: 47.2 in / 1200 mm
Width: 23.6 in / 600 mm
T-slot Width: 0.71 in / 18 mm
T-slot Center Distance: 3.94 in / 100 mm
Number of T-slots: 5

Feedrates

Max Cutting: 590 ipm / 15 m/min
Rapids (X/Y/Z): 1417 ipm / 36 m/min

Axis Motors

Servo Motor Brand: FANUC
Model (X/Y/Z):
Power (X/Y/Z):
Torque (X/Y/Z):

Tool Changer

Type: Side Mount Arm Type
Number of Tools: 24+1
Tool Dia. (All Slots): 3.1 in / 80 mm
Tool Dia. (Adjacent Empty): 5.9 in / 150 mm
Tool Length (From Gage): 11.8 in / 300 mm
Tool Weight: 17 lb / 8 kg
Tool-To-Tool Time: 2.5 sec

General

CNC Controller:
Total Weight: 14,330 lb / 6500 kg
Air Pressure: 0.5~0.7 MPA / 5~7 Bar
Footprint (W/L/H): 9.2 / 11.7 / 8.7 ft - (280 × 355 × 270 cm)

Machine Standard Configuration

Direct Drive 12000 Inline Spindle
Side Mount Arm Type Tool Changer
Pneumatic System
Centralized Oil Lubrication System
External Spindle Cooling System
Internal Auger Chip Conveyor / Internal Flush
External Manual Bucket Chip Conveyor
Air gun
3-color Light, Working Light
Full enclosure with top
Standard attachment and relevant document
Door interlock
Transformer
Windows on both sides
Air tank

Design & Structural Features

High-Rigidity Casting: The V10MX is engineered with a robust frame cast entirely from high-grade gray iron, providing industry-leading vibration damping and structural mass.
A-Frame Column Design: The column utilizes a precision-mounted herringbone and cross-ribbed "A-shape" geometry, boosting torsional stiffness and minimizing spindle deflection.
Precision Z-Axis Guidance: Centrally mounted spindle head travels on dual high-precision roller linear guides for smooth, accurate vertical movement.

V10 frame design-1.jpg

High-Precision Linear Guideway System

Triple-Axis Stability: Heavy-duty guideways on X, Y, Z axes ensure fluid positioning and high-speed rapids.
Repeatable Precision: Maintains tight tolerances over extended production cycles.

High-Performance 12,000 RPM Direct Drive Spindle

Inline Direct Drive Technology: Eliminates vibration and power loss from belts.
Advanced Thermal Management: Integrated oil cooling system maintains accuracy.
Power & Torque: Peak torque 95.5 Nm (70.4 ft-lbf) for heavy and high-speed machining.

Side-Mount Swing-Arm Automatic Tool Changer (ATC)

Rapid Cam-Driven Indexing: 24+1 station system ensures fast, reliable tool changes.
Clean Tooling Environment: Magazine positioned outside machining zone.
Industrial-Grade Components: Twin-bearing arm and sensors for stable operation.

Precision-Ground Work Table

Large Work Area: 1200 x 600 mm table supports large or multiple setups.
Standardized Fixturing: 5 T-slots compatible with North American tooling.

Chip Management

High-Volume Chip Removal: Internal flush system and dual augers included.

Automation

Automation Ready: Interface for 4th-axis, tool management, and auto-door.

Options included in Value Package I:

Fanuc 0i MF Plus (3A)
Oil chiller
Sides windows
Inside screw chip conveyor
12000rpm DDS CAT40
A/C for electrical cabinet
Outside chain type chip conveyor
4th axis interface
Water gun (Automatic)
CF card 2GB
