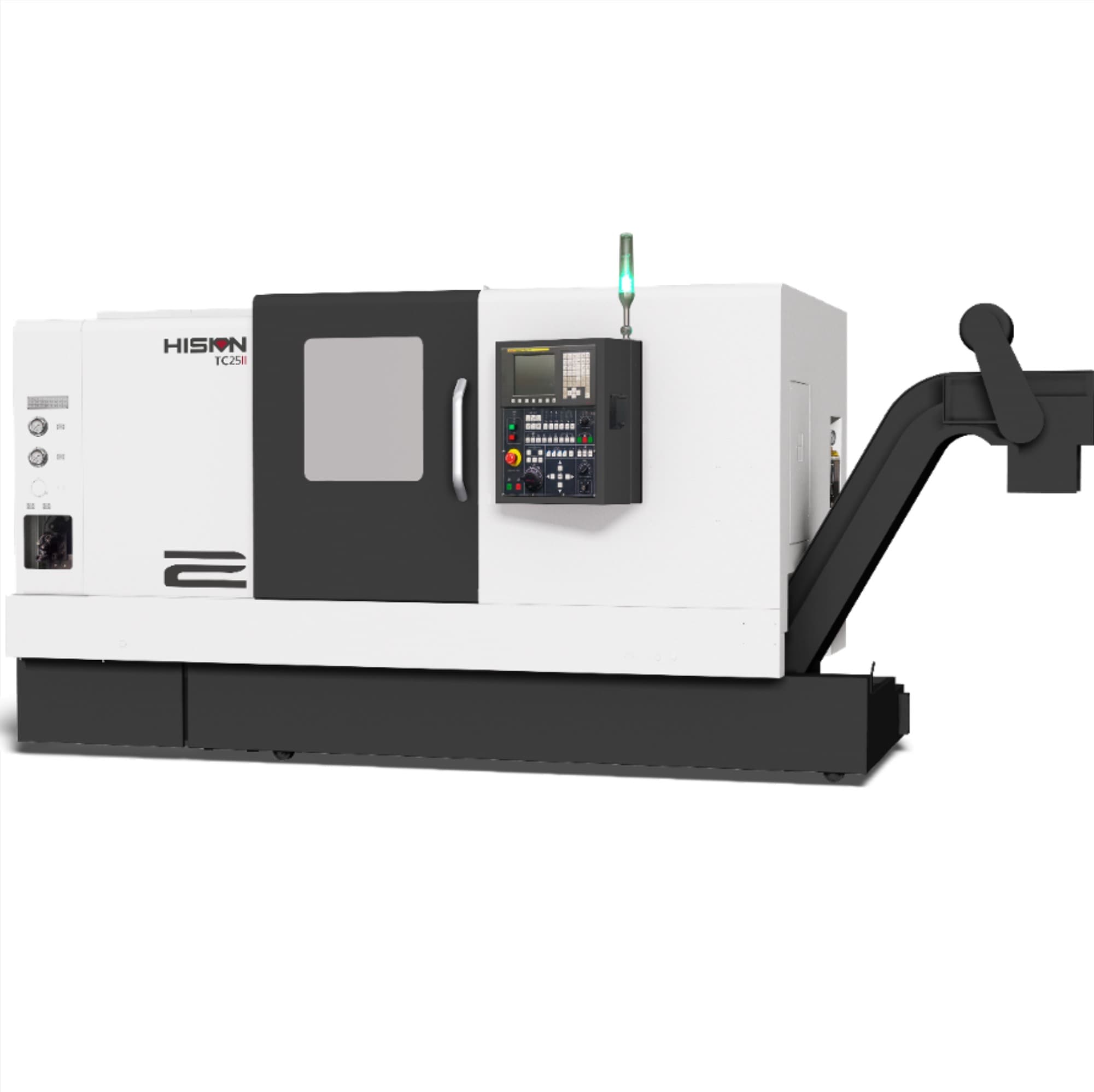

CNC Lathe Hision TC25IIx500, Box Way, max turning dia and length 400x548 mm

LB8CEMade to order

Configuration: FANUC 0i-TF(β5), Chip Conveyour, Renishaw Auto Tool Setter, Programable Tailstock (fixed quill), Coolant Through Tool 7-Mpa (1000 PSI), AC for electrical cabinet, BOT Turret

In stock in Calgary, ready for immediate shipment. Delivery and installation included.

From CA$111,879.10

Std. delivery incl. Crossed-out price = offline retail

Technical Description

Reviews

Full Specification TC25IIx500, , fixed configuration

Travels

X Axis: 8.27 in / 210 mm
Z Axis: 24.02 in / 610 mm
Max. swing over the bed: 22.05 in / 560 mm
Max. swing over the saddle: 12.60 in / 320 mm
Max. turning diameter: 15.75 in / 400 mm
Max. turning length: 21.6 in / 548 mm
Spindle center height (from floor): 38.6 in / 980 mm

Spindle

Drive: Belt Drive
Max Speed: 4,500 RPM
Spindle Nose: JIS A2-6
Rating (Max / Cont): 20 / 15 hp — (15 / 11 kW)
Max Torque: 103.3 ft-lbf — (140 Nm)
Cont Torque: 184.5 ft-lbf — (250 Nm)

Feedrates

Rapids X / Z: 945 / 1,181 ipm — (24 / 30 m/min)
Servo Motor Brand: FANUC
Servo Motor Power: 2.4 hp — (1.8 kW)

Chuck

Std. 8″ Chuck — Max speed: 4,500 rpm — Bar through: 2.01 in / 51 mm

Turret

Type: Hydraulic, BOT
Number of Tools: 12
OD Tool Size: 1 in / 25 mm
ID Tool Size: 1.5 in / 40 mm
Indexing Time (tool to tool): 0.55 sec

Tailstock

Center Size: MT No. 4
Quill Diameter: 3.94 in / 100 mm
Quill Stroke: 4.72 in / 120 mm
Stroke: 16.14 in / 410 mm

General

CNC Controller: FANUC 0i-TF (β5)
Total Weight: 9,921 lb / 4,500 kg
Footprint (L × W × H): 137.8 × 67.3 × 60.7 in — (4,200 × 2,050 × 1,850 mm)

Machine Standard Configuration

8″ hydraulic chuck with soft jaw
12-position hydraulic turret
Hydraulic tailstock with live center
Chip conveyor and trolley
Cutting coolant system
Centralized lubrication system
Full enclosure with top cover
Foot switch, door interlock, working light
3-color signal lamp, leveling blocks, transformer
Maintenance tool kit

Design & Structural Features

45° Slant Bed with Box Guideways

The machine features a one-piece cast iron 45° slant bed engineered for optimal structural integrity and long-term precision. The slant bed design improves chip evacuation, operator ergonomics, and tool accessibility. Box guideways with a Z-axis span of 180 mm deliver maximum damping capacity and stability under heavy cutting loads.

Precision Motion Control

The motor directly drives high-precision ball screws pre-stretched to minimize thermal deformation and backlash, guaranteeing high positioning accuracy and repeatability in both roughing and finishing. A centralized thin oil lubrication system continuously supplies all key motion components.

High-Precision Spindle

The spindle uses a thermally stable bearing arrangement — NSK P4/P5 grade bearings front and rear — to ensure high-speed accuracy and heavy-duty cutting capability. P4/P5 bearings reduce thermal expansion and vibration, enabling tighter tolerances and smoother surface finishes.

Front: Double-row cylindrical roller bearings NSK P4, Ø100 mm + High-speed thrust angular contact ball bearings P4, Ø100 mm.
Rear: Double-row cylindrical roller bearings P5, Ø90 mm.

Tailstock Options

Standard manual tailstock with live center included. Optional programmable tailstock with dead center and live quill available for automated or bar-work applications.

Processing Scope

Z-axis travel: 610 mm
X-axis travel: 210 mm
Tailstock travel: 410 mm — Quill travel: 120 mm
Max. turning length: 548 mm
Max. turning diameter: 400 mm

Machine Dimensions

Overall (L × W): 4,200 × 2,050 mm (with chip conveyor)
Machine body (W × H): 1,900 × 1,050 mm
Base (L × W × H): 3,415 × 1,680 × 155 mm

Included Options

RATS: Renishaw Auto Tool Setter
PTFQ: Programable Tailstock (fixed quill)
TSC7PMA: Water gun
ACCAB: AC for electric cabinet
